36V Lithium Batteries & Golf Cart Conversion Kits

Check your original battery bank and motor controller before ordering a replacement. Many older 36V EZGO TXT carts use six 6V lead-acid batteries connected in series, while 48V configurations may use six 8V batteries. Our Vatrer 36V LiFePO4 batteries have a 38.4V nominal voltage, designed for compatible 36V electrical systems.

If your cart has been modified, don't rely on the battery count alone. Check the controller label, motor specifications and existing wiring. Confirming the correct system voltage prevents buying an incompatible battery or damaging electrical components during conversion.

Yes, especially if your existing 36V motor and controller still meet your driving needs. Our Vatrer 36V lithium battery conversion kits replace heavy lead-acid batteries with lighter LiFePO4 power, eliminating routine battery watering while providing more consistent voltage under load. You also get matched lithium charging and battery monitoring without necessarily rebuilding the entire drive system.

A 48V conversion is a separate electrical upgrade that may require a different controller, solenoid and other compatible components. If your main concerns are declining battery performance, frequent maintenance and limited driving time, upgrading the existing 36V battery system may be the more straightforward solution.

Some older EZGO TXT carts use charging interlocks, reed switches and controller safety circuits that can prevent driving if the original charging system is disconnected incorrectly. Our Vatrer lithium battery conversion kits simplify battery replacement, but vehicle-specific wiring and controller requirements must still be addressed.

Check that the battery is switched on, the run/tow selector is correctly positioned, the charger is disconnected and the controller shows no fault. If the solenoid doesn't engage, have the charge-port interlock and control wiring checked against your exact TXT model's wiring diagram. Never bypass a safety interlock without an approved replacement arrangement.

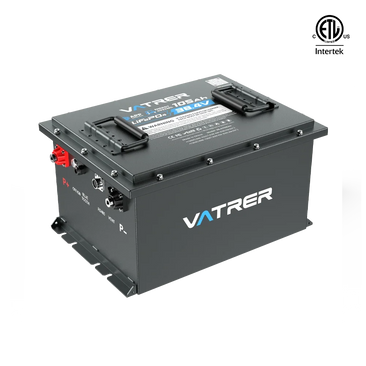

Yes, provided the battery fits securely and the mounting arrangement is suitable. For reference, our Vatrer 36V 105Ah lithium battery measures approximately 433 × 334 × 230 mm and weighs 38 kg, replacing a much heavier multi-battery lead-acid setup.

Measure the usable tray space, including height clearance, cable routing and terminal access. The original tray may need suitable mounting brackets or a secure hold-down arrangement to prevent movement on gravel roads and uneven cottage terrain. Don't leave a smaller lithium battery unsecured simply because it fits inside the former six-battery compartment.

Our Vatrer 36V LiFePO4 batteries provide more stable voltage under load than ageing lead-acid packs, helping compatible carts maintain consistent electrical power on hills. For example, our 36V 105Ah lithium battery supports 200A continuous discharge, providing up to 7.68kW of nominal DC output for demanding driving conditions.

Before carrying extra passengers or travelling steep cottage roads, check your controller's battery-current requirements, tyre size and the vehicle's rated load capacity. A stronger battery supply can reduce voltage sag, but maximum climbing ability still depends on the motor, controller, gearing and terrain. Never exceed the vehicle's approved passenger or payload limits.

Monitor your battery's state of charge (SOC) rather than estimating remaining power from distance alone. Our Vatrer 36V lithium batteries support Bluetooth monitoring and LCD battery displays, helping you check available power throughout the day. A Vatrer 36V 105Ah offers up to approximately 80 km per charge under favourable conditions, but passenger weight, hills, speed and frequent stops reduce real-world range.

For busy campground or cottage use, plan your daily routes and maintain approximately 20–30% battery reserve. Check SOC before longer trips, particularly when your return route includes steep hills or additional passengers. Recharge between heavy-use days instead of planning around the advertised maximum distance.

Many older 36V carts power 12V accessories by drawing electricity from two 6V lead-acid batteries connected in series. That arrangement no longer works when the original battery bank is replaced with a single 36V lithium battery.

Use a properly rated 36V-to-12V DC-DC converter to supply headlights, brake lights, USB outlets and other 12V accessories. For example, a combined 120W accessory load requires approximately 10A at 12V, so choose a converter with adequate additional capacity. Check the original wiring before connecting accessories, and never connect 12V equipment directly to the full 36V battery.

You may be able to retain the original charging receptacle if its wiring, polarity and interlock arrangements support the new lithium charger. Our Vatrer 36V conversion kits include matched LiFePO4 charging equipment; a 38.4V LiFePO4 battery requires a compatible charger with a 43.8V charging output.

The original lead-acid charger should not be reused unless its charging profile is explicitly approved for the new battery. Check whether your cart needs a compatible charging adapter, a replacement receptacle or changes to the charging interlock. Verify that the vehicle cannot drive away while charging, and keep the charging connections protected from moisture.

Our Vatrer 36V LiFePO4 batteries use built-in low-temperature BMS protection that stops charging when internal cell temperature falls to approximately 0°C. This can happen after a freezing night in an unheated garage or cottage shed, even when the charger and battery are otherwise functioning normally.

Move the cart or battery to a sheltered location within its permitted charging temperature range and allow the cells to warm before recharging. Check temperature and protection information through the available battery monitoring system. Avoid applying uncontrolled external heat or bypassing the BMS to force charging.

On carts equipped with regenerative braking, the motor can send electrical energy back into the battery during deceleration or downhill travel. If the battery is already nearly full, regenerative charging may exceed its permitted voltage or charging-current limits and trigger BMS protection.

Some older EZGO PDS and other electronically controlled carts use regenerative braking, so confirm your controller type before converting. Have the controller's regenerative charging behaviour checked against the battery specifications, particularly if you notice fault codes or changes in braking. Avoid beginning a long downhill trip immediately after fully charging, and stop using the cart if braking becomes unpredictable. Battery protection must not be treated as a substitute for a properly functioning braking system.
